Capacitors

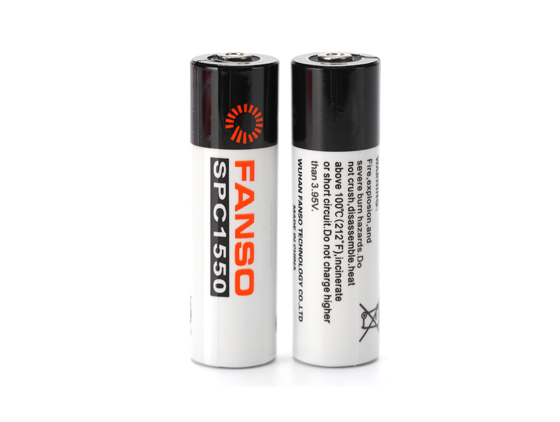

SPC1550
- Nominal voltage：
3.95
- Capacity：
160
- Dimension：
D(15.1±0.1), L(51.0±0.1) (mm)
- Quality：
Charateristics
- Instant large current discharge ability
- Ultra wide temperature
range of pulse discharge - -40℃~+85℃
- Low self-discharge rate
- mΩ level DC impedance
- mΩ DC impedance
- High safety and reliability
- UL1642、IEC60086-4
- Long lifespans
- meet the requirements
of long operating life
Specification
Model
SPC1550
| Item | Details |
|---|---|
Max charging voltage(V) : | 3.95 V |
| Capacity (3.67V)/mAh : | 160 V/mAh |
| Max current（Constant）： | 2000 mA |
| Max current（Pulse）： | 5000 mA |
| End voltage (V) : | 2.5 V |
| ESR (mΩ) : | 80 mΩ |
| Dimension（D, p, L, d）(mm) | D(15.1±0.1), L(51.0±0.1) (mm) |
| Storage ： | The storage area should be clean, cool (preferably below +20℃, not exceeding +30℃), dry and ventilated. |
| Warning： | Do not recharge, crush, incinerate, expose content to water, or heat above specified temperature range in case of explosion, burning or leakage. Disconect the battery if it reaches cut-off voltage, and dispose of used batteries in accordance with local regulations. |
